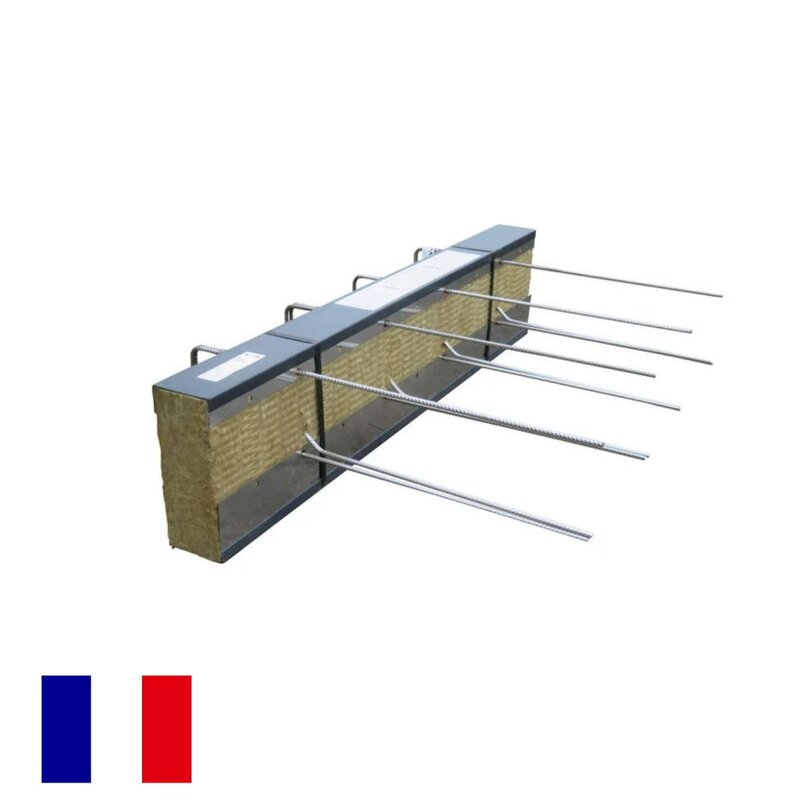

Thermal break Isotec RT+ ITI 01.03.05

Add to my wish list

RE2020 follows RT2012, as planned by the Grenelle de l’environnement agreements, intended to divide energy consumption by 3 in new constructions, i.e. 50 kWh/m² per year maximum. To produce more energy than it consumes, RE2020 housing must reduce its energy needs as much as possible. More particularly, this requires better processing of thermal bridges for which the ISOTEC RT+ ITI break plays a key role.



With its new 80 mm insulator, the new Isotec RT+ ITI break meets the most demanding regulations enforced.

It is a holder of AT 3.1/16-878_V2 which guarantees compliance with standards in terms of:

- Fire safety

- Acoustic regulation

- Thermal performance

- Stability

- Thermal expansion of the façade

Benefits
  • Continuous stainless steel bars: 100% reliable in stainless steel over the entire length
  • When the balconies are stored vertically or stacked, there is no risk of rust stains on the architectonic elements
  • Using rock wool insulation ensures very high resistance to fire
  • Isotec transmits the loads from overhanging elements such as balconies, cornices, acroterions, etc.
  • Isotec was designed to withstand shearing and
  • or flexion loads
  • Therefore any traditional project can be performed with an Isotec element
  • Reinforced with stainless steel mounting plates ensuring high robustness during transport and fitting on the worksite
LEVIAT technical advice



Isotec is an element which is stable and rugged due to its composition. Therefore, it is highly resistant and withstands transport and worksite handling conditions very well. Composed of mineral wool, it offers fire resistance exceeding 90 minutes. The compression studs offer additional safety in terms of anchoring in the two concrete elements.
